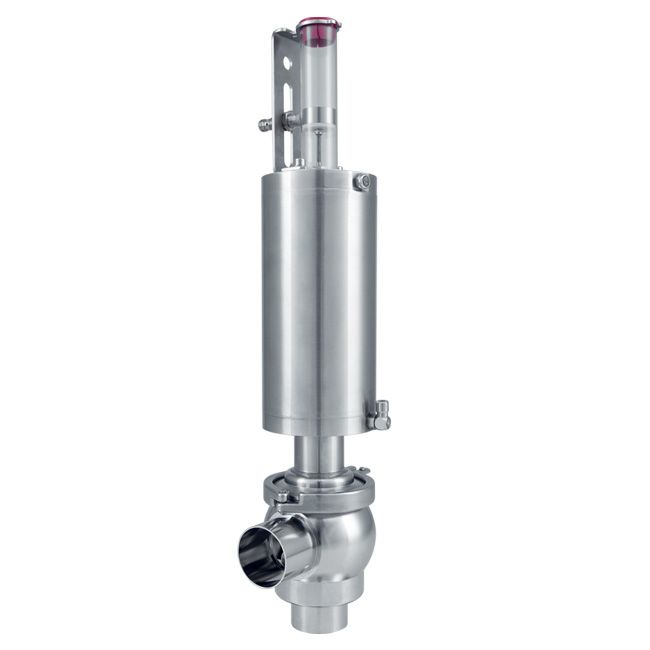

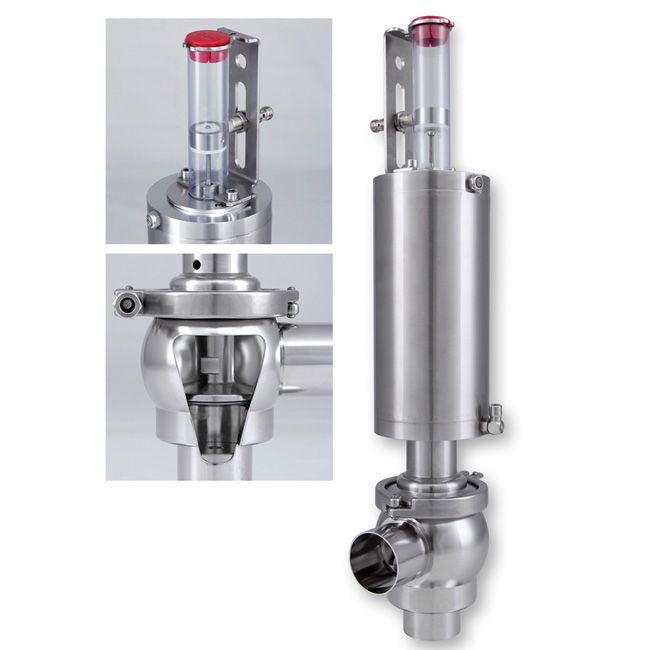

Applying the Kieselmann Overflow Valve
Kieselmann has different types of overflow valves to protect your process against overpressure. The Kieselmann overflow valve is based on the successful KI-DS single seat valves. These overflow valves can be set easily in a pressure range of 0.5 to 12 bar. The valve will open when the process will reach the required pressure. Thereafter the product will be transfered to a different position by the other outlet of the overflow valve. These overflow valves are available in sizes DN25 until DN100 and OD sizes 1”- 4”. Usually the valves are designed with a hygienic flat plug. The valves can be delivered with a pneumatically connection to lift the plug during the CIP process. By using a sensor, the valve setting Open/Close can be queried to the PLC.
Versions:
- Angle valve
- T-valve
- Cross valve
| Articlenr. | Description | Stock |
|---|---|---|
|
32234027KI
|
Relief valve Angular 5076
Weld/weld, 0.5-6.0 bar
DN32 304L, polished
pneumatic seatlift
|
|
Materials |
|
| In contact with product | Stainless steel 316L |
| Other parts | Stainless steel 304L |
| Seals | EPDM |
Technical data |
|
| Nominal pressure | PN16 |
| Connections | Weld |
| Sizes | DN25 – DN100 |
| 1” – 4” | |
| Actuator | Ø 104 |
| Adjusting pressure range | 0.5 to 12 bar |
Optional |
|
| Seals | HNBR |
| FKM (Viton) | |
| Actuator | Ø 167 |
| Proximity switch | |
| Other connections | On request |
