Inoxpa type A480
Applications of Inoxpa butterfly valve type A480 & A490
Since 2020, the type A480 & A490 valve has replaced the previous Inoxpa butterfly valves. Type A490 refers to butterfly valves mounted between flanges and type A480 refers to all other types of butterfly valves.
The price-quality ratio is a priority for the Spanish brand Inoxpa. The butterfly valves comply with all the latest requirements and standards and are produced in accordance with the EHEDG directives. In addition, the valves and seals are marked and provided with material number, size and batch number.
The number of lantern rings has been reduced because of the 2 centralized mounting holes. The air motors which can be mounted onto the valves, are available in 2 versions:
1. An air-opening and spring-closing version.
2. A double-acting air-opening/air-closing version.
The renewed T-section seal type fits better, causes less friction and therefore less wear.
To enable full control and actuation of the valves, Inoxpa has developed the renewed C-Top Smart control head. Interested in the features of this control head? Read all the details below or contact our consultants.
| Articlenr. | Description | Dimensions | Material type | Connection | Operating | Stock |
|---|---|---|---|---|---|---|
|
25133004IN
|

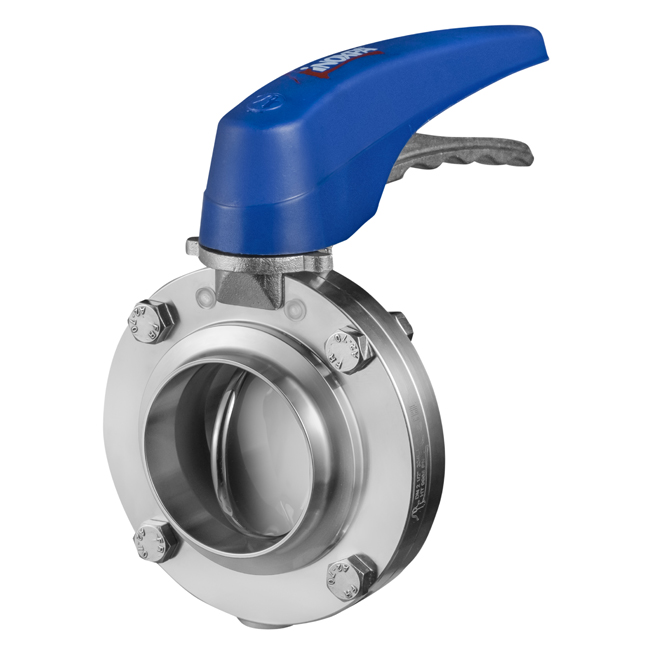

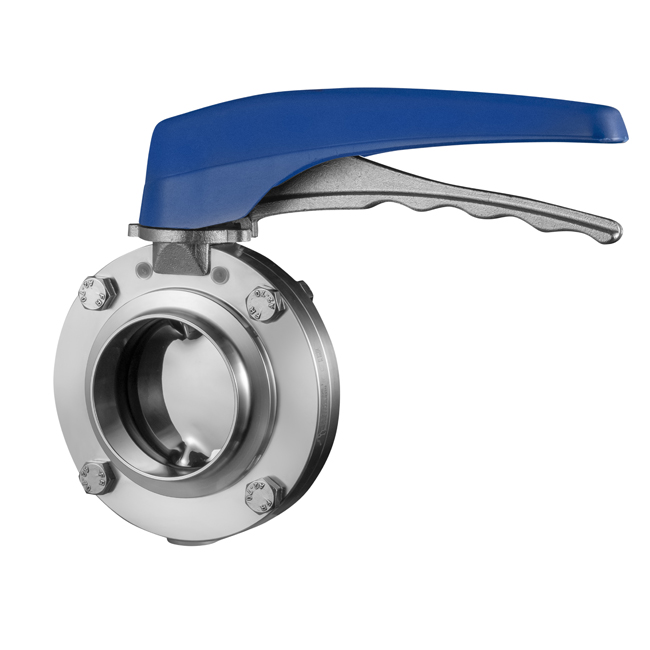

Inoxpa butterfly valve A480
Weld / Weld
1" (25,40) 1.4307 (304L)
EPDM
Excluding handle
|
1" (ø 25,4 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133005IN
|
Inoxpa butterfly valve A480
Weld / Weld
DN25 (29) 1.4307 (304L)
EPDM
Excluding handle
|
DN25 (ø 29 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133007IN
|
Inoxpa butterfly valve A480
Weld / Weld
DN32 (35) 1.4307 (304L)
EPDM
Excluding handle
|
DN32 (ø 35 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133008IN
|
Inoxpa butterfly valve A480
Weld / Weld
1,5" (38,10) 1.4307 (304L)
EPDM
Excluding handle
|
1,5" (ø 38,1 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133009IN
|
Inoxpa butterfly valve A480
Weld / Weld
DN40 (41) 1.4307 (304L)
EPDM
Excluding handle
|
DN40 (ø 41 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133010IN
|
Inoxpa butterfly valve A480
Weld / Weld
2" (50,80) 1.4307 (304L)
EPDM
Excluding handle
|
2" (ø 50,8 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133011IN
|
Inoxpa butterfly valve A480
Weld / Weld
DN50 (53) 1.4307 (304L)
EPDM
Excluding handle
|
DN50 (ø 53 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133012IN
|
Inoxpa butterfly valve A480
Weld / Weld
2,5" (63,50) 1.4307 (304L)
EPDM
Excluding handle
|
2,5" (ø 63,5 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133013IN
|
Inoxpa butterfly valve A480
Weld / Weld
DN65 (70) 1.4307 (304L)
EPDM
Excluding handle
|
DN65 (ø 70 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133014IN
|
Inoxpa butterfly valve A480
Weld / Weld
3" (76,10) 1.4307 (304L)
EPDM
Excluding handle
|
3" (ø 76,1 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133015IN
|
Inoxpa butterfly valve A480
Weld / Weld
DN80 (85) 1.4307 (304L)
EPDM
Excluding handle
|
DN80 (ø 85 mm)
|
304 (L)
|
Weld / Weld
|
|
|
|
25133016IN
|
Inoxpa butterfly valve A480
Weld / Weld
4" (101,60) 1.4307 (304L)
EPDM
Excluding handle
|
4" (ø 101,6 mm)
|
304 (L)
|
Weld / Weld
|
|
|
| Articlenr. | Description | Dimension | Elastomer | Stock |
|---|---|---|---|---|
|
27100284IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 EPDM DN40
|
|
|
|
|
27100252IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 FPM (Viton) DN10 - DN15
|
|
|
|
|
27100255IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 FPM (Viton) DN25
|
|
|
|
|
27100236IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 VMQ (Siliconen) DN50
|
|
|
|
|
27100257IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 FPM (Viton) DN32
|
|
|
|
|
27100261IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 FPM (Viton) DN50
|
|
|
|
|
27100260IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 FPM (Viton) 2"
|
|
|
|
|
27100283IN
|
Part Inoxpa butterfly valve
Valve seat Mod. A480
EPDM 1,5"
|
|
|
|
|
27100259IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 FPM (Viton) DN40
|
|
|
|
|
27100288IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 EPDM DN65
|
|
|
|
|
27100277IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 EPDM Dn10 - DN15
|
|
|
|
|
27100243IN
|
Spare part Inoxpa butterfly valve
Seal ring Mod. 2020 VMQ (Siliconen) 4"
|
|
|
|
| Materials | |
| Product contact parts | 1.4301/1.4307 or AISI 304(L) and 1.4404 or AISI 316L |
| Inside surface finish | Ra <0,8 μm |
| Other parts | 1.4301 / AISI 304 |
| Seals | EPDM |
| Type of seal (valve) | T-profile |
| Type of seal (flanges | Square seals |
| Bushes | Yes, upper and lower part |
| Max. working pressure | 10 bar |
| Min. working pressure | 0,2 bar |
| Max. Temperature | Depends on seal |
| Sizes | DN10 till DN100, 1” t/m 4” |
| DIN size | DN10 - DN100 |
| Inch size | Inch 1” – 4” |
| Seals | EPDM, MVQ (Silicone), FPM (Viton) |
| Uitvoering | |
| Connections | Weld, Thread, Liner Nut, Flange and Clamp |
| DIN11851, DIN32676, ISO2852, ASME BPE | |
| Operation | manually (2 positions) |
| Trapless | |
| Manually with proximity switch | |
| Pneumatic operations |
Air open / Spring closed Air open / Air closed |
| Operating pressure | 6 till bar |
| Proximity switch | On bracket |
| Options | Operating with control options |
| Electrical operations | |
| Control unit | |
| Atex | |
| Maintanence | |
| Special tools required? | No |
