Take of points
In the norm the technical specifications are described regarding to the occurring weld fittings and couplings. The fittings are described with the SF code and could vary in finish grade 1 to 6. Also for the fittings the SF 1 and SF 4 are chosen as the standard. The difference between these 2 variants is the way of obtaining the internal surface finishing. SF1 = Ra max. 0,5 µm > pulled or mechanical polished. SF4 = Ra max. 0,375µm > polished and afterwards electrolytic polished.
| Articlenr. | Description | Dimensions | Dimensions 2 ASME | Internal surface | Stock |
|---|---|---|---|---|---|
|
05637756TC
|

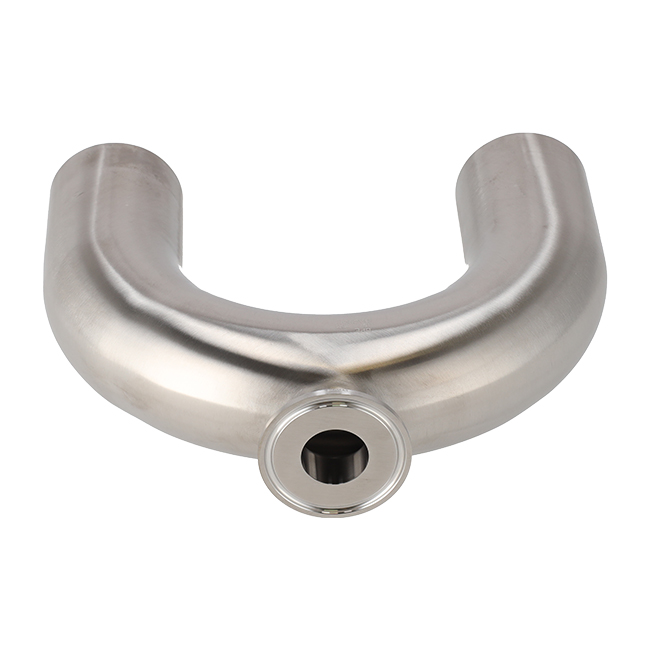

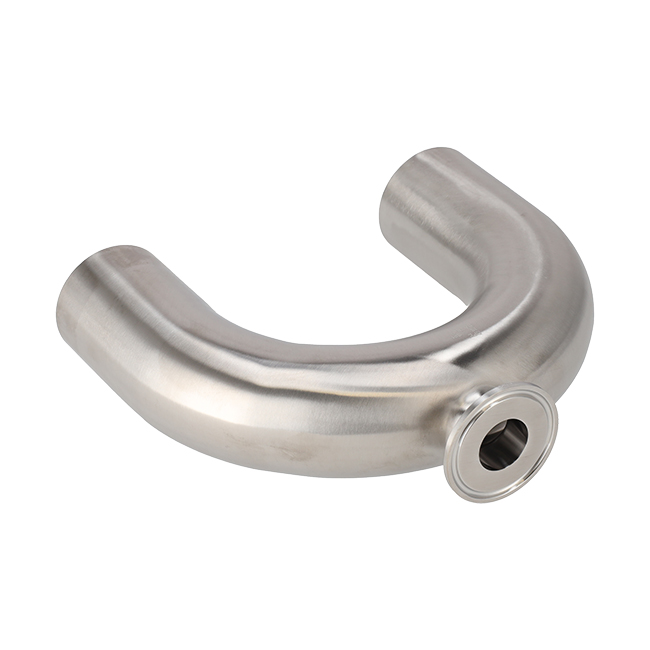

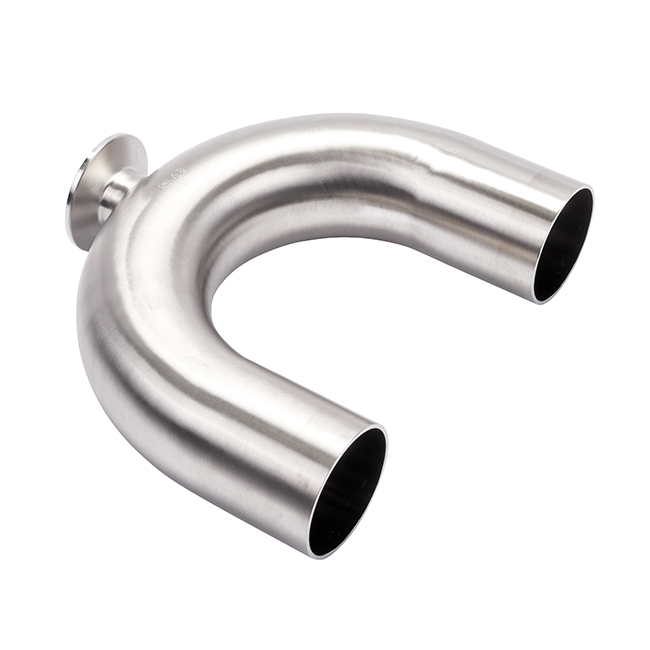

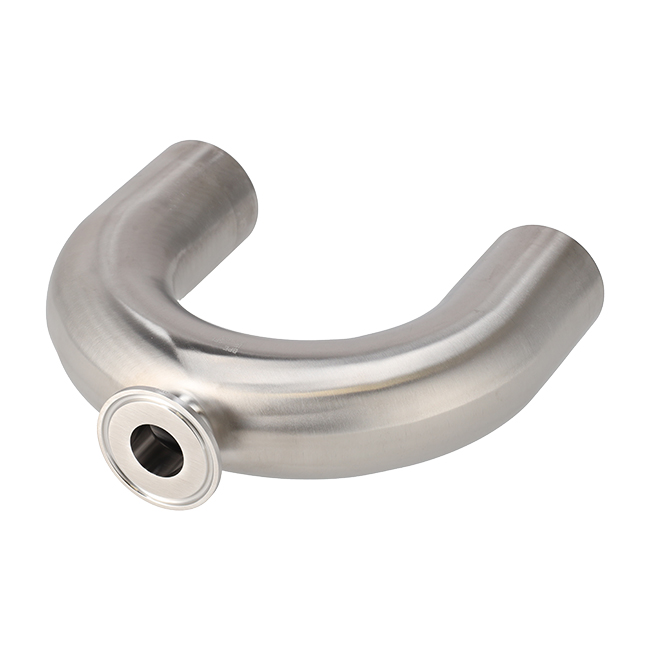

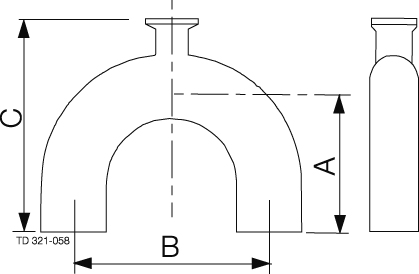

Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
1" x 0,5" (25,40 x 12,70)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
1" (ø 25,4 mm)
|
1/2" (ø 12,7)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637757TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
1" x 0,75" (25,4 x 19,05)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
1" (ø 25,4 mm)
|
3/4" (ø 19,05)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637758TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
1,5" x 0,5" (38,10 x 12,70)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
1,5" (ø 38,1 mm)
|
1/2" (ø 12,7)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637759TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
1,5" x 0,75" (38,10 x 19,05)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
1,5" (ø 38,1 mm)
|
3/4" (ø 19,05)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637760TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
1,5" x 1" (38,10 x 25,40)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
1,5" (ø 38,1 mm)
|
1" (ø 25,4)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637761TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2" x 0,5" (50,80 x 12,70)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2" (ø 50,8 mm)
|
1/2" (ø 12,7)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637762TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2" x 0,75" (50,80 x 19,05)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2" (ø 50,8 mm)
|
3/4" (ø 19,05)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637763TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2" x 1" (50,80 x 25,40)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2" (ø 50,8 mm)
|
1" (ø 25,4)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637765TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2" x 1,5" (50,80 x 38,10)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2" (ø 50,8 mm)
|
1,5" (ø 38,1)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637766TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2,5" x 0,5" (63,50 x 12,70)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2,5" (ø 63,5 mm)
|
1/2" (ø 12,7)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637767TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2,5" x 0,75" (76,20 x 19,05)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2,5" (ø 63,5 mm)
|
3/4" (ø 19,05)
|
Ra ≤ 0,38 (SF4)
|
|
|
05637768TC
|
Tee bottom outlet
Weld / Weld / Clamp
180° / B2UMPBOA
2,5" x 1" (63,50 x 25,40)
1.4404 (316L)
SF4 Internal surface Ra ≤ 0,38µm
Electropolished
ASME BPE - 2019
|
2,5" (ø 63,5 mm)
|
1" (ø 25,4)
|
Ra ≤ 0,38 (SF4)
|
|
