Connection T-pieces
Where a fixed connection is not possible or desirable, the so-called couplers are often used. These are available in all versions and dimensions. S.K.S. can provide in all thinkable possibilities. Besides all versions with standard components, there are also couple pieces available which can be custom made according your drawing.
The possibilities of process connections are almost unlimited. A combination of different kinds of connections is also possible and in practice it is often applied to get a good connection between the existing situation and the new application. This combination can also mean a connection between pharma, food and industrial.
| Articlenr. | Description | Dimensions | Material type | External surface | Connection | Stock |
|---|---|---|---|---|---|---|
|
07434401
|

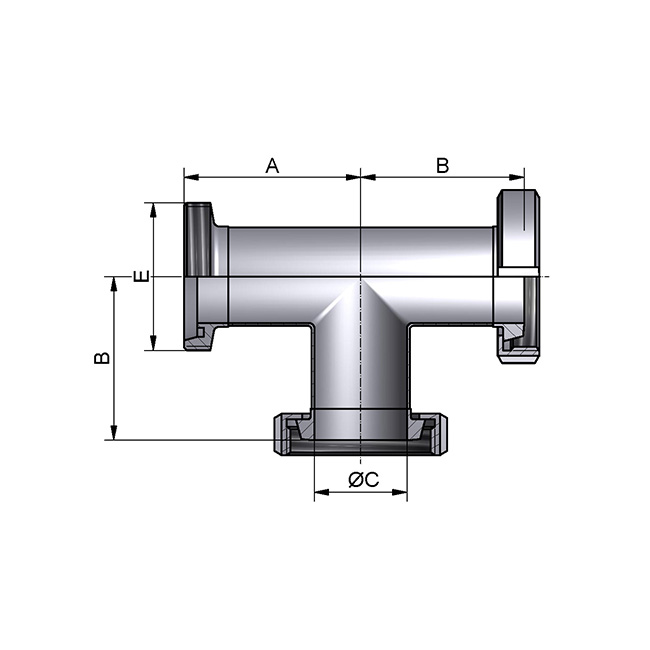

Connection tee
Outside matt
DN10 (13,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN10 (ø 13 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434402
|
Connection tee
Outside matt
DN15 (19,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN15 (ø 19 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434403
|
Connection tee
Outside matt
DN20 (23,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN20 (ø 23 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434405
|
Connection tee
Outside matt
DN25 (29,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN25 (ø 29 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434407
|
Connection tee
Outside matt
DN32 (35,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN32 (ø 35 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434409
|
Connection tee
Outside matt
DN40 (41,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN40 (ø 41 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434411
|
Connection tee
Outside matt
DN50 (53,00 x 1,50) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN50 (ø 53 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434413
|
Connection tee
Outside matt
DN65 (70,00 x 2,00) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN65 (ø 70 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434415
|
Connection tee
Outside matt
DN80 (85,00 x 2,00) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN80 (ø 85 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07434417
|
Connection tee
Outside matt
DN100 (104,00 x 2,00) 1.4307 (304L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN100 (ø 104 mm)
|
304 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07438401
|
Connection tee
Outside matt
DN10 (13,00 x 1,50) 1.4404 (316L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN10 (ø 13 mm)
|
316 (L)
|
Mat
|
Liner / Liner / Thread
|
|
|
07438402
|
Connection tee
Outside matt
DN15 (19,00 x 1,50) 1.4404 (316L)
Liner / Liner / Male part
EN10374-A / DIN11852
|
DN15 (ø 19 mm)
|
316 (L)
|
Mat
|
Liner / Liner / Thread
|
|
